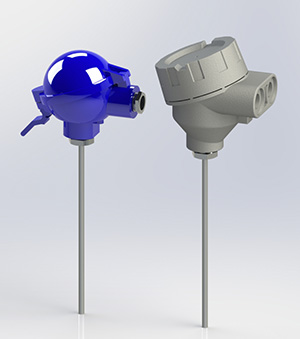

12 Mineral insulated insert with connection head
EPIC® SENSORS T-M-N / W-M-N
Mineral insulated insert with connection head is designed for the process industry.
EPIC® SENSORS offers a large scale of solutions for your process!
Features
- according to DIN 43721
- temperature range *) -200...+1200 °C
- AISI 316L or INCONEL 600 as standard delivery material, other materials on request
- Pt100 or thermocouple as sensing element
- Pt100 accuracy class A as standard delivery
- thermocouple accuracy class 1 as standard delivery
- MI cable structured sensor element
- bendable
- vibration proof
- typically used with compression fitting
- adjustable immersion length can be achieved
- tailored solutions according to customer specific needs
- ATEX and IECEx compatible Ex db and Ex i versions available
- 3D step models available on request.
Typical applications
- energy and power plant technology
- process industry
- chemical industry
- machinery and vessel construction
- manufacturing industry.
Check out all our temperature sensors!
Connection heads
Version D/H with a quick release clip and blue epoxy lack finish is our standard, but for certain applications other types are better suited. Connection heads are also available as accessories or spare parts, please see more on page Connection heads »
