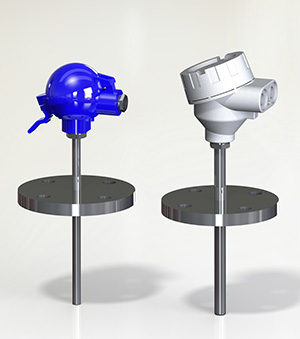

3 Flanged temperature sensor
EPIC® SENSORS T-F / W-F
Super robust flanged temperature sensor with a temperature range of -200...+1200 °C.
Choose EPIC® SENSORS for your process to get the best of it!
Features
- according to DIN 43772 form 2F
- temperature range *) -200...+1200 °C
- neck pipe for heat source clearance
- AISI 316L as standard delivery material, other materials on request
- Pt100 or thermocouple as sensing element
- Pt100 accuracy class A as standard delivery
- thermocouple accuracy class 1 as standard delivery
- MI cable structured sensor element
- internal sensor element replaceable on the fly
- flange size and type according to customer application
- tailored solutions according to customer specific needs
- ATEX and IECEx compatible Ex db and Ex i versions available
- typical neck pipe length 145 mm, other lengths on request
- 3D step models available on request.
Typical applications
- energy and power plant technology
- process industry
- chemical industry
- machinery and vessel construction
- manufacturing industry.
Check out all our temperature sensors!
Connection heads
Version D/H with a quick release clip and blue epoxy lack finish is our standard, but for certain applications other types are better suited. Connection heads are also available as accessories or spare parts, please see more on page Connection heads »
