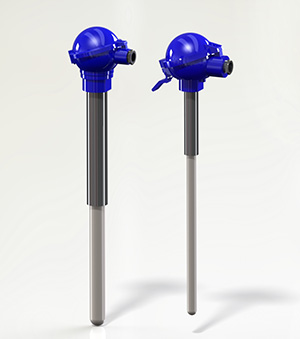

9 Immersible termocouple sensor
EPIC® SENSORS T-K / T-AK / T-AKK
Immersible thermocouple sensors with a ceramic well.
Choose EPIC® SENSORS for your challenging needs!
Features
- similar to DIN 43733
- temperature range *) -200...+1600 °C
- thermocouple as sensing element
- thermocouple accuracy class 1 as standard delivery
- ceramic thermowell with C610 or C799 as typical material, other materials on request
- ceramic C610 and C799 are gastight materials
- typical neckpipe materials AISI304/316L
- thermo-cement filling in between neckpipe and ceramic
- installation recommendation with weldable flange, adjustable flange or with gas tight compression fitting
- tailored solutions according to customer specific needs
- ATEX and IECEx compatible Ex i versions available
- 3D step models available on request.
Typical applications
- very high temperature applications
- energy and power plant technology
- process industry
- chemical industry
- machinery and vessel construction
- manufacturing industry.
Check out all our temperature sensors!
Connection heads
Version D/H with quick release clip and blue epoxy lack finish is our standard, but for certain applications other types are better suited. Connection heads are also available as accessories or spare parts, please see more on page Connection heads »
