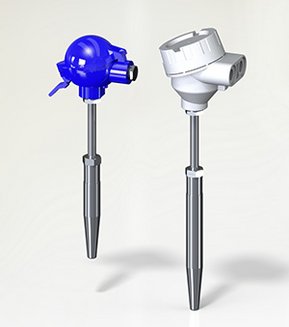

4 Weldable temperature sensor
EPIC® SENSORS T-D / W-D
Weldable temperature sensor with a standard or tailored cooling neck.
EPIC® SENSORS is the best choice for your process!
Features
- according to DIN 43772 form 4
- temperature range *) -200...+1200 °C
- neck pipe for heat source clearance
- with weldable thermowell
- AISI 316L as standard delivery material, other materials on request
- Pt100 or thermocouple as sensing element
- Pt100 accuracy class A as standard delivery
- thermocouple accuracy class 1 as standard delivery
- MI cable structured sensor element
- internal sensor element replaceable on the fly
- tailored solutions according to customer specific needs
- ATEX and IECEx compatible Ex db and Ex i versions available
- neck pipe length 165 mm as standard delivery, other lengths on request
- 3D step models available on request.
Typical applications
- energy and power plant technology
- process industry
- chemical industry
- machinery and vessel construction
- manufacturing industry.
Check out all our temperature sensors!
Installation example
Image below: Thermowell welded on a welded root sleeve. Please see more information on page: Welded root sleeves »
Connection heads
Version D/H with a quick release clip and blue epoxy lack finish is our standard, but for certain applications other types are better suited. Connection heads are also available as accessories or spare parts, please see more on page Connection heads »
