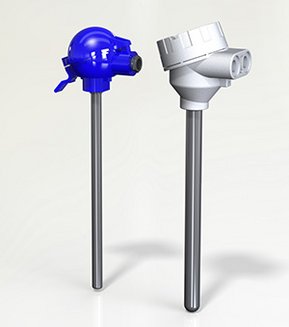

8 Immersible temperature sensor
EPIC® SENSORS T-A-Ø / W-A-Ø or T-A-Ø-U / W-A-Ø-U
Immersible temperature sensor for energy and power plant technology. EPIC® SENSORS brings quality and accuracy for you!
Features
- according to DIN 43772 form 1
- temperature range *) -200...+1200 °C
- AISI 316L/EN1.4044 or heat-resistant steel AISI 446-1/EN1.4749 as typical material, other materials on request
- available with solid tip
- 200 mm as typical length for the solid tip
- Pt100 or thermocouple as sensing element
- Pt100 accuracy class A as standard delivery
- thermocouple accuracy class 1 as standard delivery
- MI cable structured sensor element
- internal sensor element replaceable on the fly
- tailored solutions according to customer specific needs
- ATEX and IECEx compatible Ex db and Ex i versions available
- 3D step models available on request.
Typical applications
- energy and power plant technology
- process industry
- chemical industry
- machinery and vessel construction
- manufacturing industry.
Check out all our temperature sensors!
Connection heads
Version D/H a with quick release clip and blue epoxy lack finish is our standard, but for certain applications other types are better suited. Connection heads are also available as accessories or spare parts, please see more on page Connection heads »
